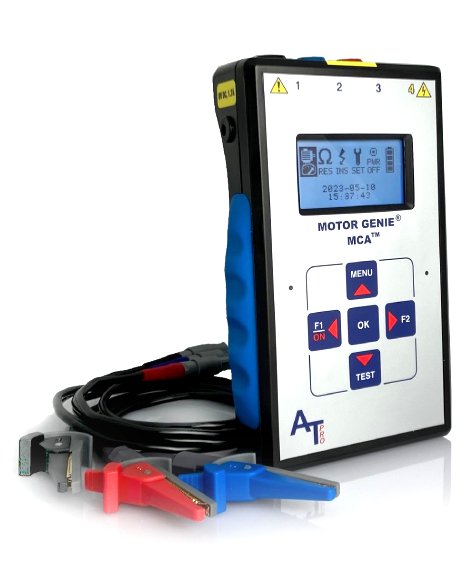

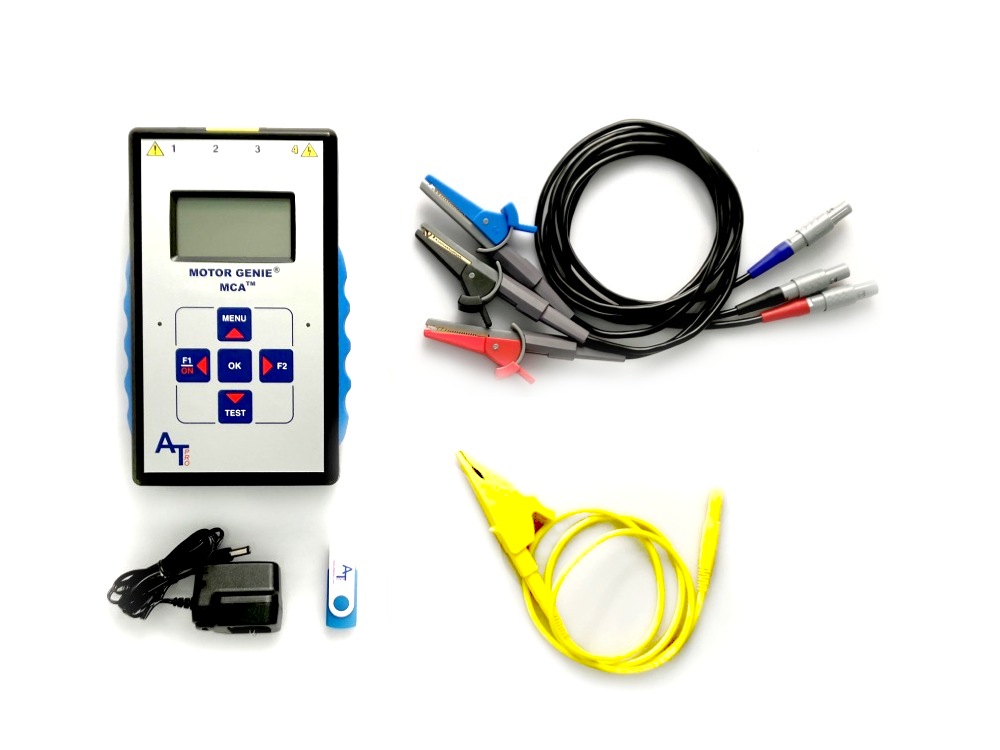

Motor Genie MCA™
Deenergized Motor Circuit Analysis™ (MCA) Testing Instrument
Capabilities
The MOTOR GENIE® MCA is a handheld electric motor analyzer that uses patented technology to troubleshoot low-voltage AC induction motors (< 1000V).
The MOTOR GENIE® MCA helps find:
- Winding Faults
- Ground Faults
- Open Connection Issues
- Contamination Issues
See real-time diagnostic data on:
- Rotor
- Stator
- Insulation
- and more…
Features
- Handheld & Lightweight (under 1lb)
- On-screen step-by-step testing instructions
- Tests take less than 3 minutes
- See status on Rotor, Stator, Resistance, Insulation & more
- Real-time Impedance, Phase Angle and Current Frequency readings per phase
- 4-Wire Kelvin Bridge for Absolute Accuracy
- Reporting Via Free Motor Genie App (iOS & Android)

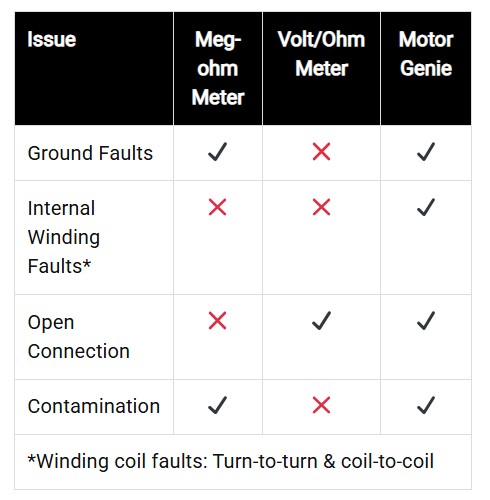

Much More Than Your Grandpa’s Megohmmeter
With its advanced capabilities, the MOTOR GENIE® MCA™ outperforms other traditional tools such as the Megohmmeter, RCL meter and other resistance meters.
In addition, the MOTOR GENIE® MCA™ includes the most diagnostic functions for a lower price than other electric motor analyzers.
Related product
- Related product
- Related product
- Related product
- Related product
- Related product
- Related product
- Related product
- Related product

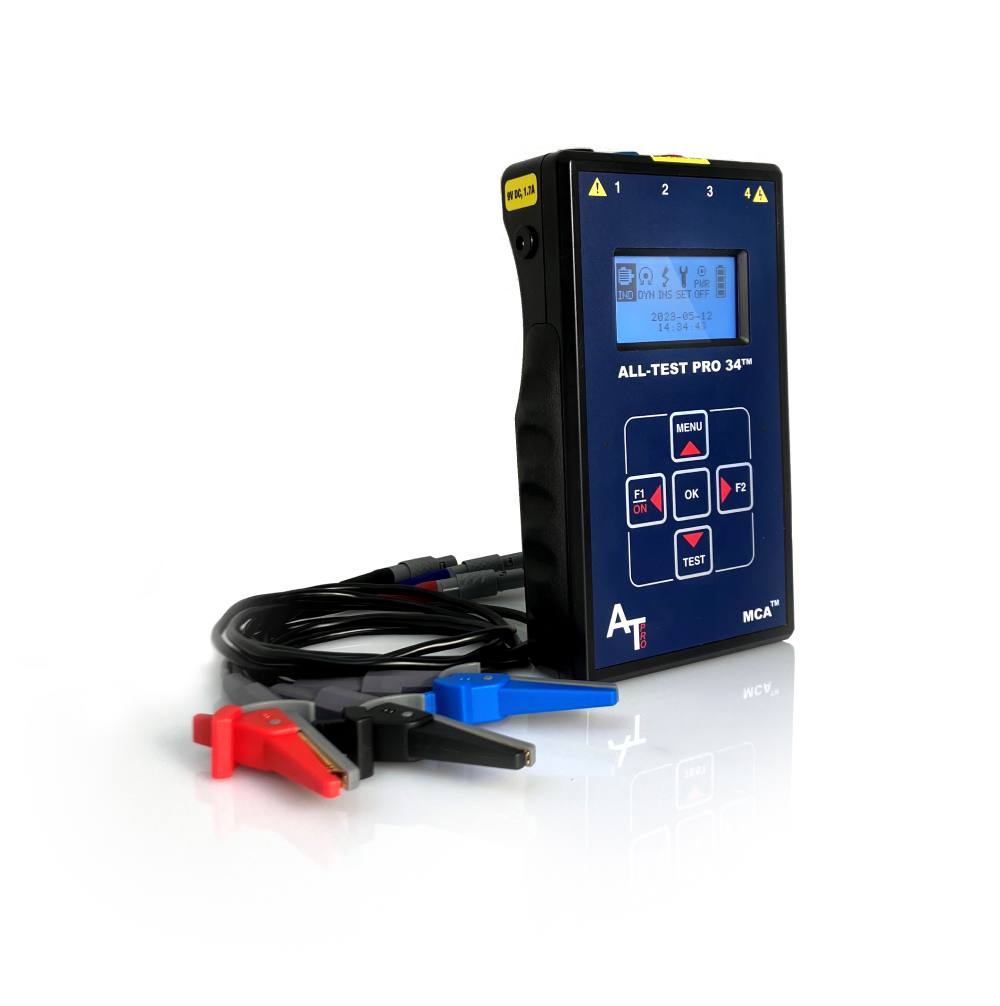

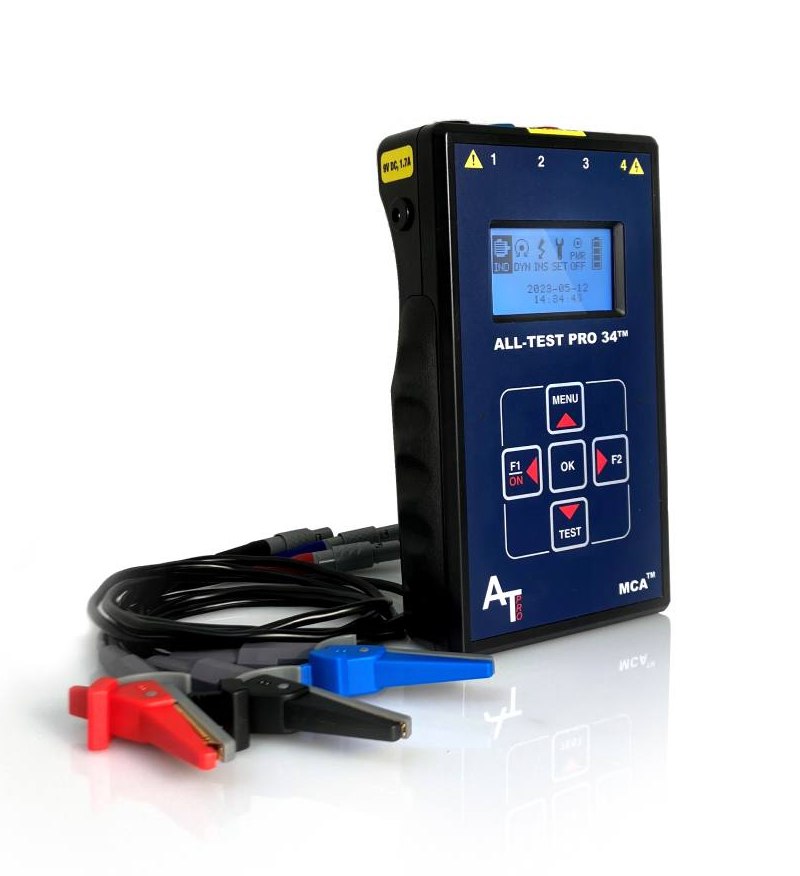

AT34 EV™
Electric Vehicle Testing Equipment
Deenergized Motor Circuit Analysis™ (MCA) Testing Instrument
The AT34 EV™ instrument is the only tool currently on the market for testing permanent magnet motors and generators used in electric & hybrid vehicles.
Electric Vehicle Testing with the AT34 EV™

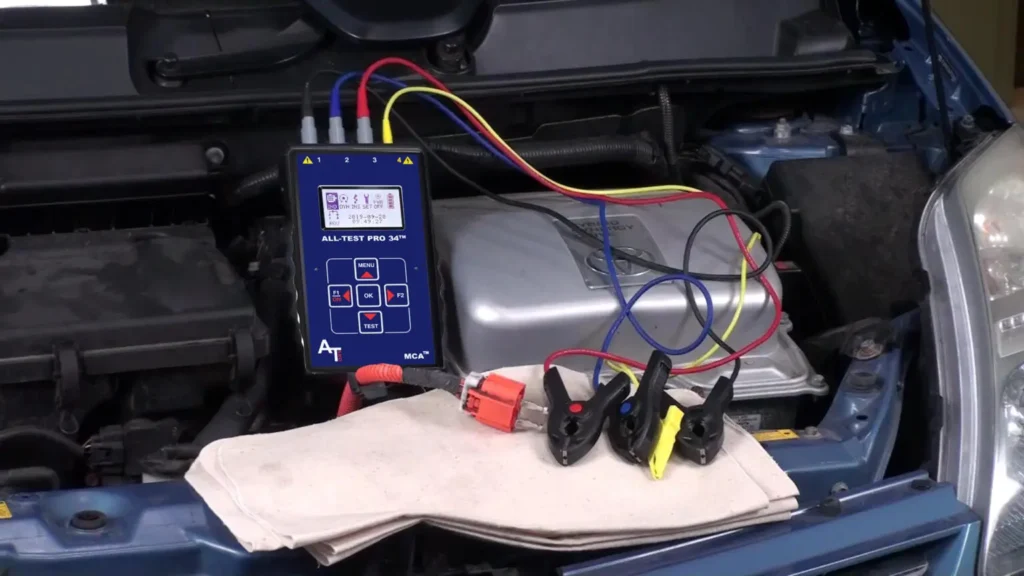

The AT34 EV™ electric and hybrid motor tester is an advanced permanent magnet motor testing device that quickly assesses the operating condition of EV Motors. The AT34 EV™ instrument is hand-held and allows technicians to test EV motors without disassembling connected components.
Use the AT34 EV for:
- Quickly determining the condition of EV motors
- Trending conditions of EV motors over time
Features
- Hand-held & lightweight (under 1lb)
- On-screen, step-by-step testing instructions
- Quick tests (less than 3 minutes)
- Condition monitoring & trending capabilities
Uses
- Determine condition of EV motor
- Trend condition of EV motor over time
- Evaluate condition of other types of permanent magnet motors

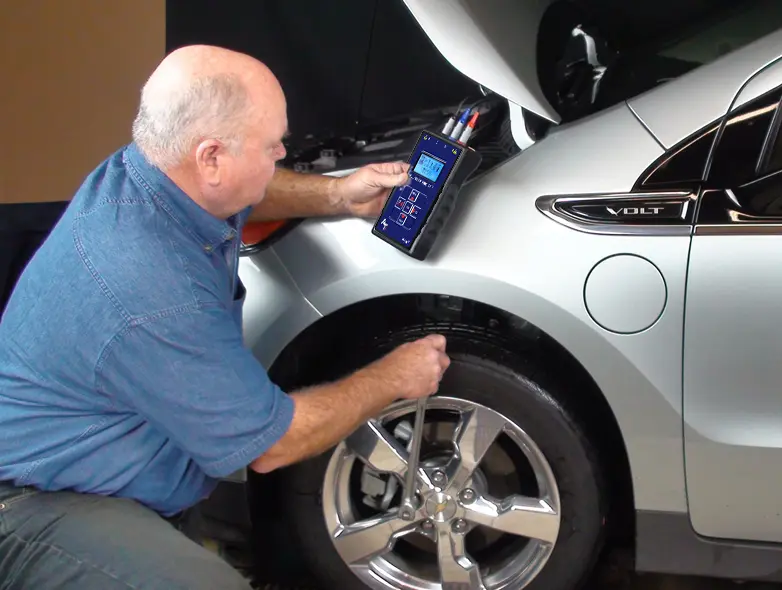

EV MOTOR TESTING WITH THE AT34 EV™
OEM vehicle on-board diagnostics may not provide comprehensive analysis methods necessary for determining the health of an aged EM or provide clarity of determining whether a problem resides within the EM or its Power Inverter Module (PIM) system. Since the cost of an EM or PIM system can result in thousands of repair dollars, identifying and determining the root cause of the problem is essential. Furthermore, the labor time required to identify and confirm the root cause of a problem can be extensive, adding to the already substantial part cost of the repair. And, if the systems are misdiagnosed, the parts and labor costs escalate significantly.
